30 Set/Sets per Month factory direct sales , good quality , quick delivery time
Packaging & Delivery
standard export package , iron package
Jingzhou or Yichang etc as your request

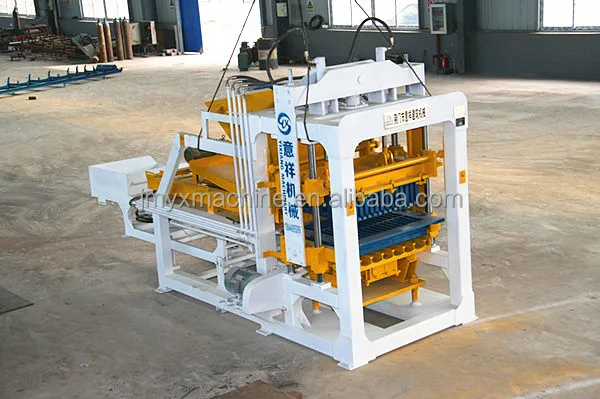

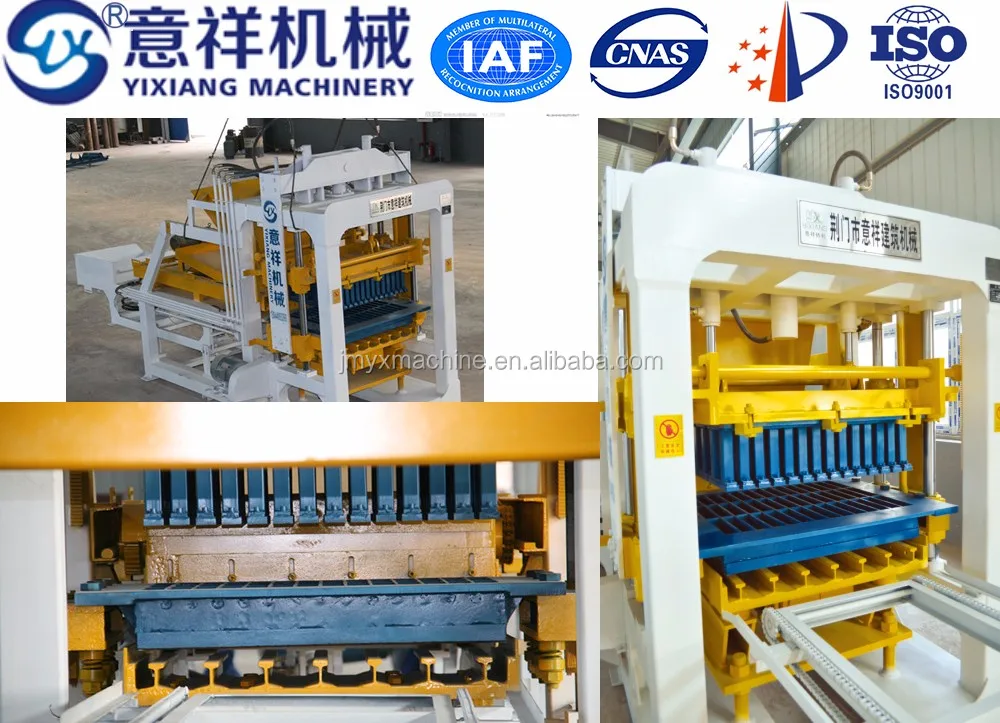

YXQT series bricks making machine is one kind of machine used to manufacture bricks, its process of manufacturing bricks is different from the traditional technology of baking clay bricks, YXQT series bricks making machine forms bricks through hydraulic pressure and has no need of baking process. Yixiang YXQT series bricks making machine is designed and manufactured combining features of demestic & foreign like-product and market demand, possesses the features of compact structure, high pressure, high strength, full-sealed and dust-free, circulating lubrication, easy operation, high output and durability. The most advanced technologies are adopted in the parts of Yixiang YXQT series bricks/blocks making machine such as materials feeding device, vibration system, PLC control system, featured of high driving force, stable operation, accurate positioning, low repairing rate, etc.
Main Technical Parameter
Co-vibration of platform & mold
Power of Hydrauli Pressure Motor
Power of Materials Spreading Machine
Raw Materials can be used
Cement, Sand, Fly Ash, Coal Gangue, Ceramsite, Silica Fume, Gravel, Perlite, Waste Construction Materials Powders, etc.
Theoretical Production Capacity
Above data is only for your references, the actual production capacity based on real situation.
Yixiang Bricks Making Machine has distinctive characteristics, processes advantages such as one machine for multi-purposes, high efficiency and energy saving, green and environment friendly, etc. It makes the utmost of industrial waste residue and construction waste as raw materials and adopts the technology of formation by compression to manufacture various bricks and blocks which are applicable to urban and rural construction. Waste is turned into Wealth.
The tight integration between sensor technology and computer control technology is taken to make Yixiang Bricks Making Machine, and this brings high automation to our machine.

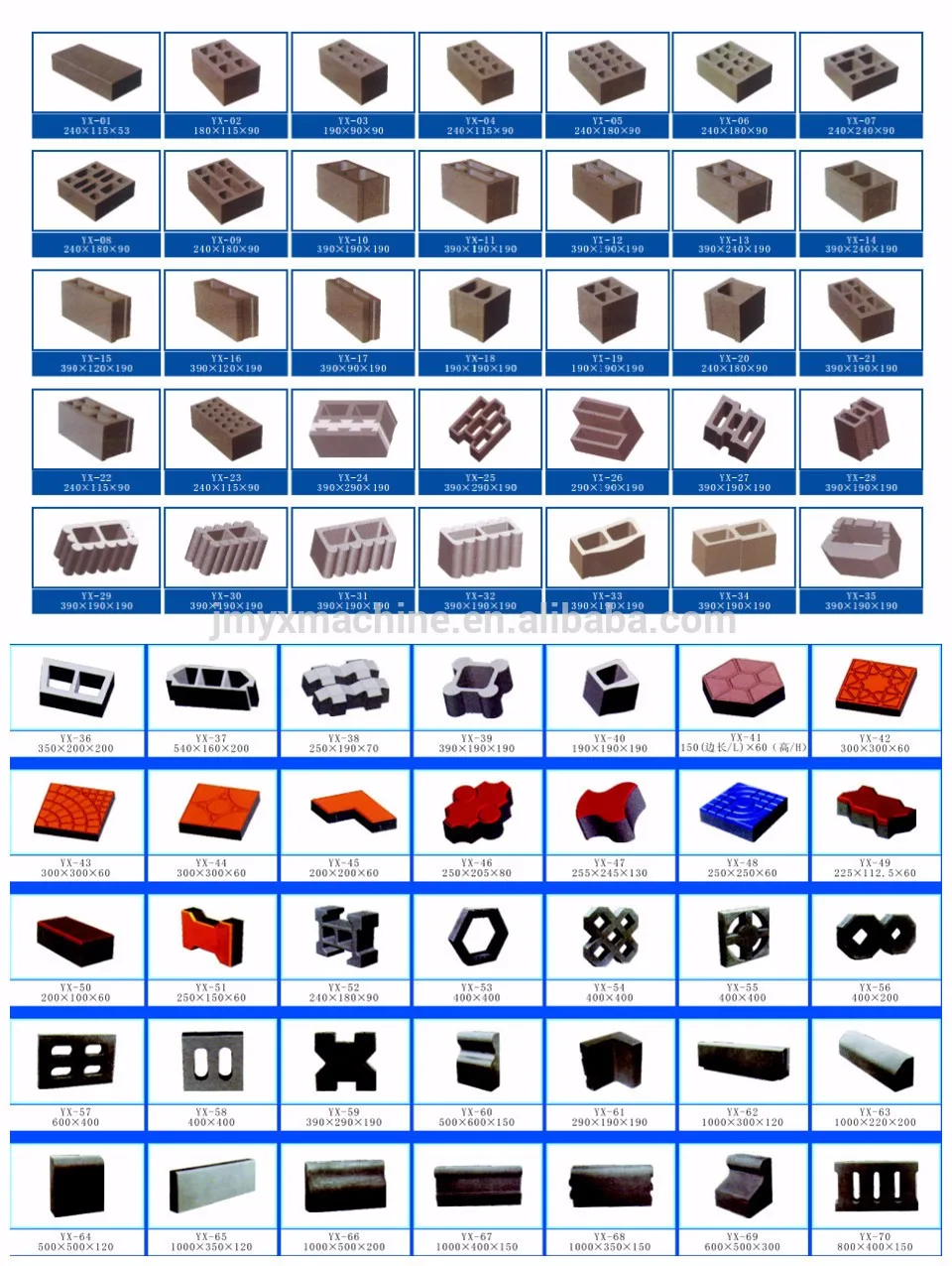

Comparing with the similar machine, Yixiang Bricks Making Machine owns below outstanding features: 1. Exquisite craftsmanship, durable for use. We adopt the heat treatment and carburization technology to increase the lifespan of the molds, strong high-strength solid steel structure is used to make Yixiang machine, and concise hydraulic pressure system is taken for being easy to check trouble. 2. Low tolerance of bricks manufactured, with good uniformity 3. Materials are even inside bricks 4. Vertical synchronized vibration is produced by hydraulic drive under computer control, materials is fed with low frequency and formed with high frequency, excellent vibration effects can be caused to various materials. 5. Computer operation is taken, control system is advanced, low noise 6. All the feeding of raw materials are automatically controlled, tolerance of finished bricks and blocks is lessened 7. One machine for multi-purpose, varieties of finished bricks and blocks can be manufactured as long as mold is changed 8. Automatic and Intelligent level is high, saving cost, appearance of finished product is standard and beautiful 9. Core parts of Yixiang Bricks Machine are chosen of famous brand, such as German Siemenz motors, Japan Mitsubishi PLC, Omron travel switch
1. The main frame adopts special welding Process manufacturing good rigidity, high strength, strong stability. 2. Press head and mold case uses Four rod guide pin location, Jig lock, Motion stability, Good compatibility, Easy to change. 3. Steel welding material uses selected steel of high quality, 8 mm Wall thickness,and adopts the special technical process of increasing self-weight, damping and noise reduction.

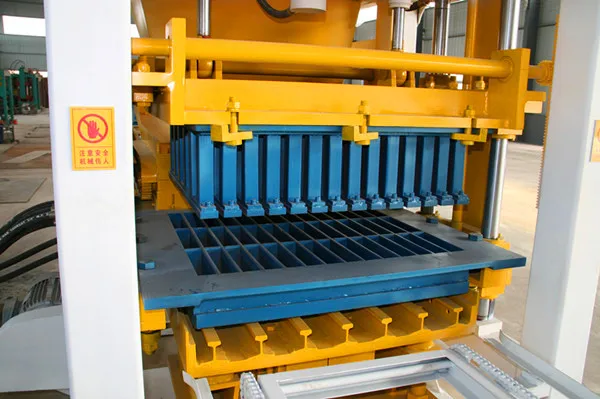

The molding unit is the core part of the production line. The guide pillar is made of solid steel and coated with hard chrome, therefore, it can resist rust and stronger vibration and last longer without deformation. Made of high carbon steel. The mold has a lifetime of twenty thousand cycles. After the lifetime of the mold ends, it will fail to form clear edges to the brick. The molding unit is equipped with high-sensitive sensors to halt it, if there is any fault.

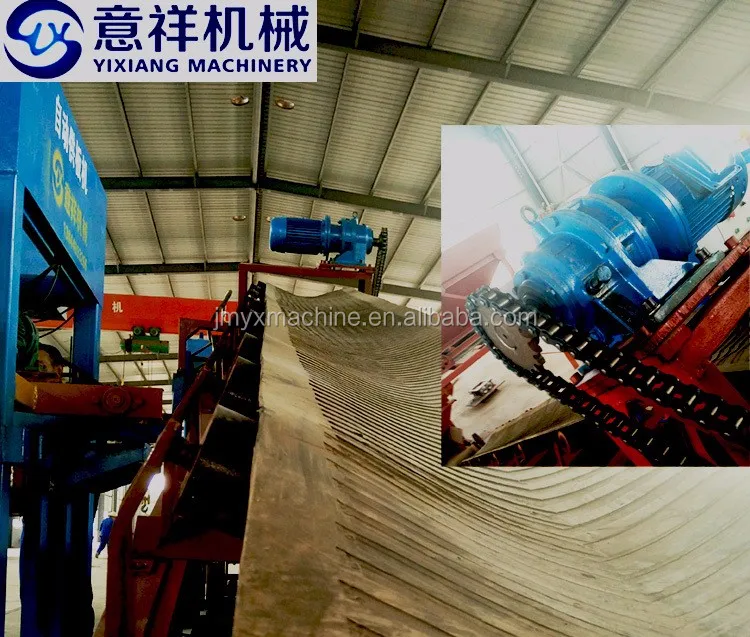

The belt conveyor is equipped with "Herringbone-shaped" belt, which guarantees a stable transmission of the mixed raw material. The driven system of the belt conveyor consists of decelerator, variable frequency motor, encoder, and frequency converter, which makes the running of the conveyor very smooth, controls the speed of the conveyor precisely, and also prolongs the lifetime of the motor. The decelerator and variable frequency motor are integrated into one unit, which can largely facilitate the installation on site.

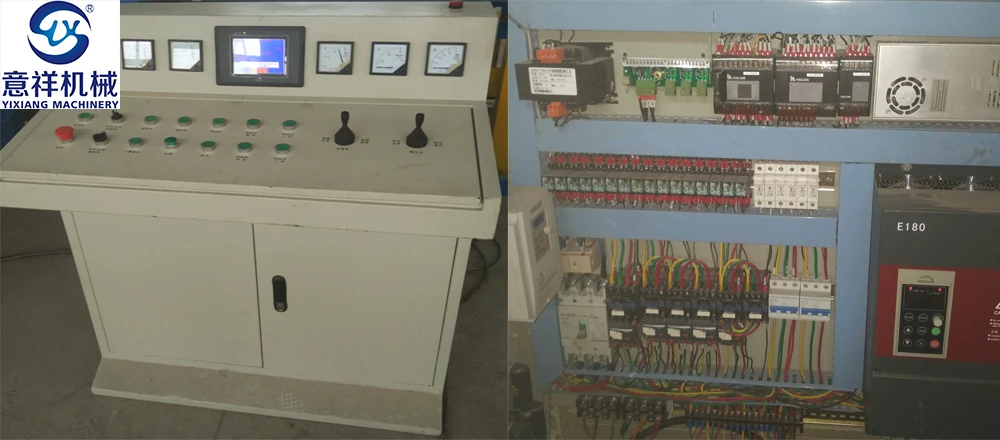

We use state-of-the-art electronic parts to ensure production safety and smooth manufacturing.
PLC: Weinview Touch Screen: Weinview Relay: Omron Frequency Changer: Delixi
Hydraulic Pressure Unit
The proportional valve and magnetic valve used are from HNC.
It is equipped with variable frequency motor.
The single hose design makes the unit more consistent and gives it a longer lifetime.
Block Stacking Machine
Used to stake pallets of blocks so as to be convenient for forklift to move blocks together with pallets away to depot.
Pallet Feeding Machine
Used to automatically feed pallet into blocks making machine, helping save labors.
* Inquiry and consulting support. * Factory layout plan * View our Factory and we will lead you to our customer's brick/block factory.
* Training how to install the machine, training how to use the machine. * 18 moonths quality guarantee * Engineers available to service machinery overseas.
Used to replace traditional wooden and bamboo pallets, with higher strength and lighter weight
Welcome to contact Mr. John Zhang Salesman Mobile Phone (also Whatsapp, Telegram, Viber, Line, Zalo, & Wechat): +86 17786224233 Skype & Facebook: john_zhangheng(at)hotmail.com Facebook Page: @YixiangMachinery
You can enter below two facebook links to view videos show how this bricks making machine works https://www.facebook.com/YixiangMachinery/videos/1555936551163489/ https://www.facebook.com/YixiangMachinery/videos/1418519531571859/
